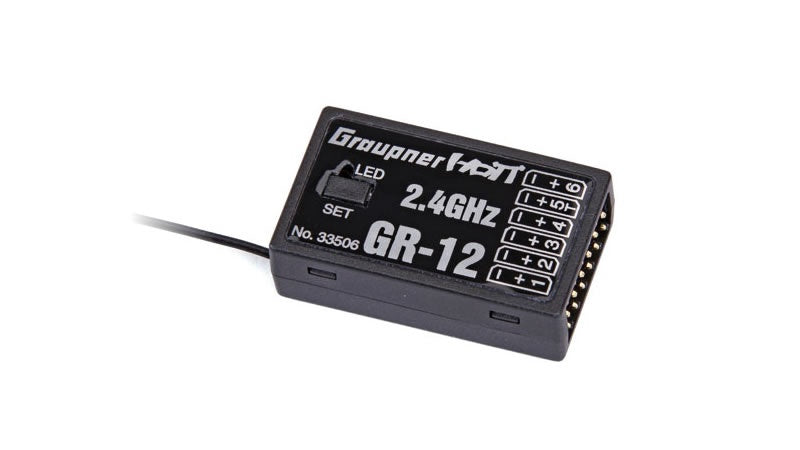

Graupner GR-12 6ch HOTT Receiver 33506

Brand: Graupner

Type: Receiver

Frequency Band: 2.4GHz

MPN: 33506

OVERVIEW

The GR-12 is a 2.4GHz full range receiver with built-in telemetry, the Graupner GR-12 6 Channel receiver is small sized and lightweight, lending itself very well for small park flyers, lightweight hand launch sailplanes, helicopters and multirotors. The ultra-low voltage requirements of the GR-12 allows it to operate on a single-cell LiPo making ideal for DLG gliders.

The GR-12 provides real-time bi-directional data transmission of critical system health data like temperatures, receiver voltage and signal strength using the Graupner HoTT protocol providing you with telemetry information you need for a safe and secure flight. The built-in program mixers allow increased flexibility in flight precision and function.

FEATURES

Up to 75 channel hopping for extreme operating reliability and immunity to external interference
Compact and lightweight
Front-load servo connections for easier installation in small airframes
Digital output for SUMD, SUMDV3, SUMO, SUMI, SBUS signal providing connectivity to other vendors flight controllers and secondary satellite for other Graupner HoTT receivers
Selectable frame rate of 10ms or 20ms for digital or analog servos
Fail Safe and Hold function
Low power consumption
Wide voltage ranges from 3.6V to 8.4V
Built-in telemetry for temperatures, receiver voltage and receiver strength monitoring
5 built-in program mixers

INCLUDES

GR-12 Receiver
Manual
