JP Electric Retracts 60-120 Main Set And Legs (2)

Key Features

• Axle Diameter 4mm

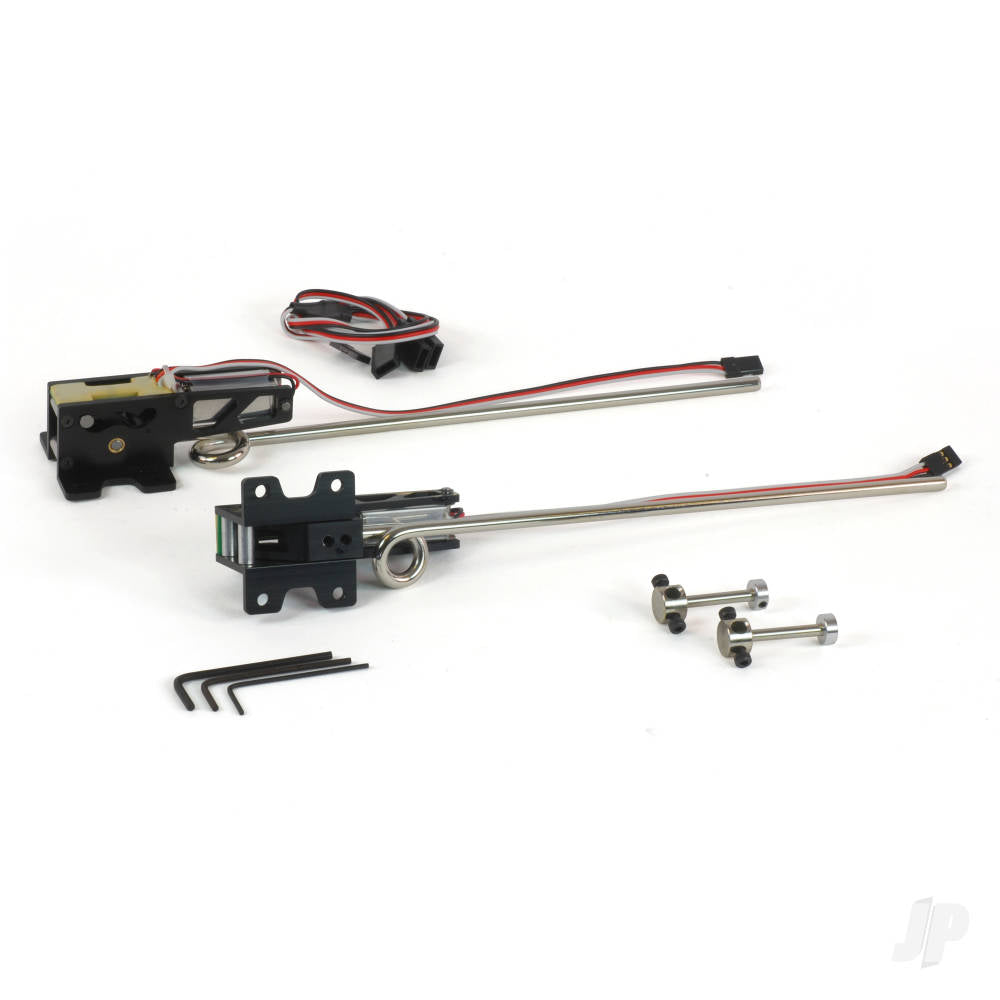

What's in the Box

• 2x 60 - 120-size 90 degree electric main units.
• 2x Wire main leg.
• 2x Adjustable axle.
• 2x Wheel retaining collet.
• 1x 3 to 1 extension lead.
• 1x Allen key set.

Product Description

Self-contained and simple to install the Aircraft Mechanic 60 - 120 size electric main retract units take their power from your receiver battery and, for aircraft with a tricycle undercarriage configuration, work in unison with the Aircraft Mechanic 60 - 120 size nose retract unit (4406345). Beautifully machined, sturdy and slop-free the mechanism rivals some of the best examples on the market at a price that doesn't break the bank. Kiss goodbye to mechanical systems and enjoy solid, dependable performance, time after time.

Specification:

Current draw at idle (mA):	5
Operating current (mA):	900
Operating voltage (V):	4.8 - 7.4
Rec'd aircraft weight (g):	3500 - 6800
Unit weight (g):	130 each
Sequence time at 4.8V (sec):	1.25
