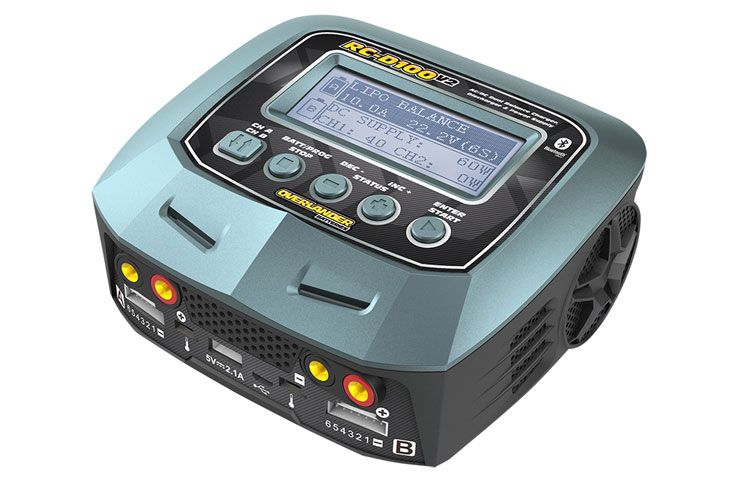

OVERLANDER D100 V2 AC/DC DUAL BALANCE CHARGER / DISCHARGER / POWER SUPPLY

The RC-D100 V2 Charger boasts two independent charging circuits. This allows the user to have two completely separate charge set-ups operating at any one time. The charger includes two separate balancing boards for each channel as well as multiple charge leads – see the 'What’s In The Box' tab for more details.

This charger is AC and DC compatible. When powered by AC mains, power is distributed between the two channels; 100watts split over the two charging channels. This can be distributed in whichever way the user likes (eg- 50/50, 60/40, 70/30, etc.). When used on DC power this charger has 100Watts on each channel.

The RC-D100 V2 Charger is fully adaptable to be used as a power supply. It can supply 100W/13.8V DC power; this allows the user to power equipment from anywhere.


The additional voice guide feature of this charger makes it more accessible than most other chargers on the market. This can be toggled on and off depending on personal preference, but it is great for creating a more user friendly option.

The RC-D100 V2 can be controlled and monitored via your smartphone using the Charge Tracker V2 App. This allows the use to stop and start the charging process and check on progress. A PC software with the same abilities  is also available. These can be accessed via the links in the 'Downloads' tab.

Th Charge Tracker V2 app features a 'Scan to go' function. This allows the user to save and run charge set-ups via a QR code. Once the parameters of the charge/discharge/storage charge are set the app can generate a QR code that stores this information to make operation easier than ever. Print and apply the QR code to your packs. then simply scan the code using the app to begin the process.

Charging Process

Charging with the RC-D100 V2 is extremely easy! Within a few simple steps the charger is ready to do all the hard work for you. With the charger display visible you can easily see the status of the charge, monitor each individual cell reading and the amount of capacity that has been put into your battery pack. It will also show you how long the charge has been operating for. All charge functions automatically cut-off once the process is complete, minimising the risk of human error.

LiPo:
