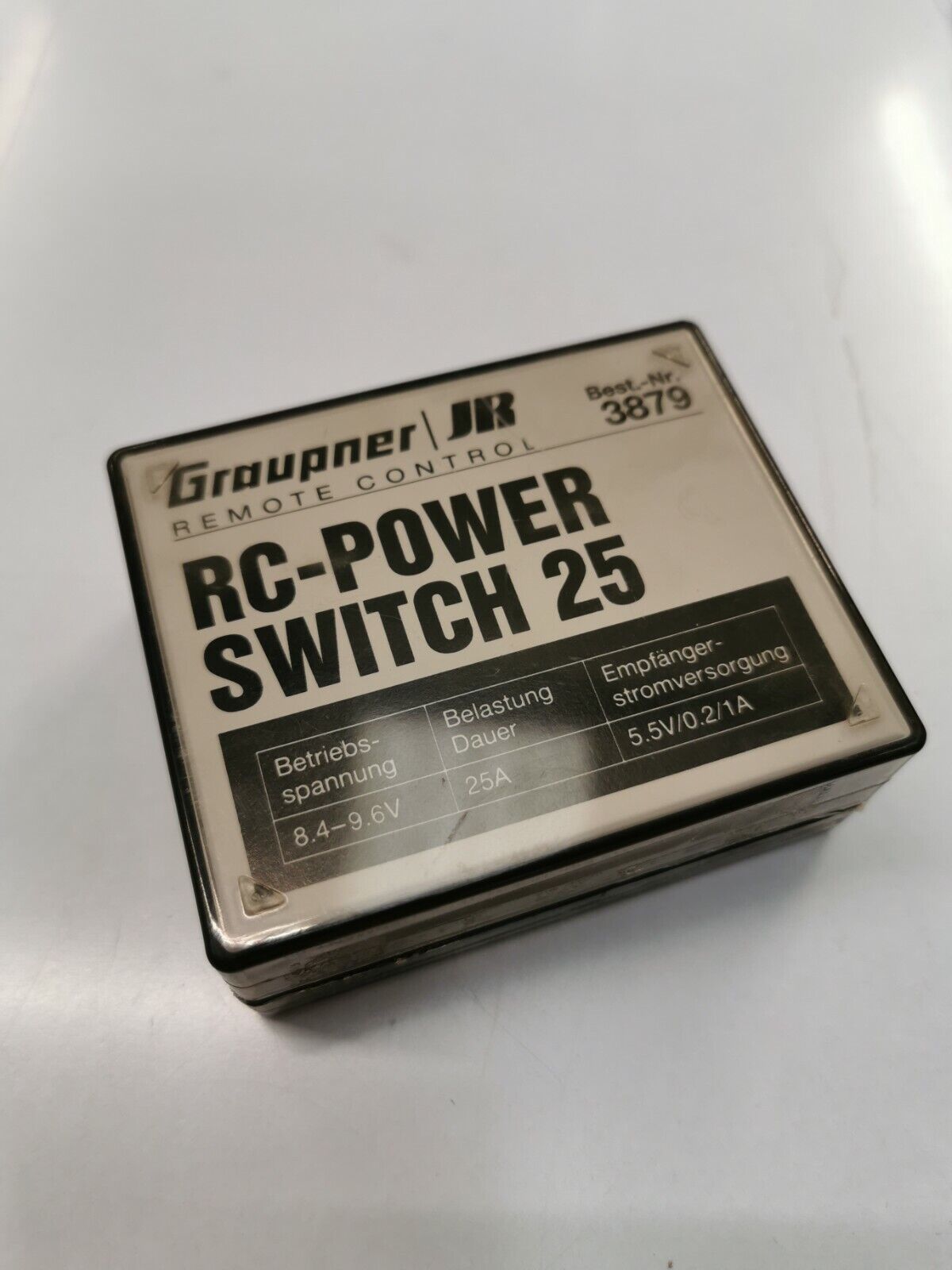

Graupner High Quality RC Power Switch 25 8.4V-9.6V 25A G3879

With BEC system and EMK-brake.

New version of the 100 000-fold approved

POWER-SWITCH 20 - improved technically and

higher-powered. The R/C-POWER-SWITCH 25 is wired directly to the receiver. The unit is rated for

switching currents of up to 25 A, which are

switched by a high-current relay, and feeds a

stabilized voltage off the 7- or 8-cell main drive

battery to the receiver via a connection cable.

Cut-off electronics turn the electric motor off in time when the main drive battery voltage is getting low, ensuring in this manner that adequate current will be available to the receiver over a safe span

of time to permit landing an electric-powered plane, for example. The switch point is adjustable within the range of control stick travel, both as regards direction and position.

The R/C-POWER-SWITCH 25 may also be used for a variety of other switch functions, such as switching on electric motors, lights, horns, pumps etc.

Specification

Operating voltage 8,4 ... 9,6 V

Numbre of cells 7 to 8

Switch rating 25 A

EMK-brake

Receiver power supply 5,5 V/0,2 A (1 A) 1 sec

Weight incl. leads 55 g

Dimensions 50 x 35 x 21 mm
