Ripmax Micro 9g Quartz SB09 4.8v-6v Analogue Servo- 0.10sec-1.6kg @6v Rc Servo

Ripmax Quartz SB09, Mini 9g Analogue Servo

The SB09 is a basic 9g micro servo, that is ideal for a wide variety of small electric model applications. With up to 1.6kg/cm of torque available, there's no lack of performance either!

Specification

Case Centre: Translucent Plastic

Main Case: Translucent Plastic

Weight: 9g

Bearings: Plastic

Gear Type: Nylon

Speed: 0.12 sec/60 deg @ 4.8V

Speed: 0.10 sec/60 deg @ 6.0V

Torque: 1.2kg/cm @ 4.8V

Torque: 1.6kg/cm @ 6.0V

Voltage: 4.8 - 6.0V

Dimensions: 32 x 12 x 36.5mm

Electric Motor: Brushed

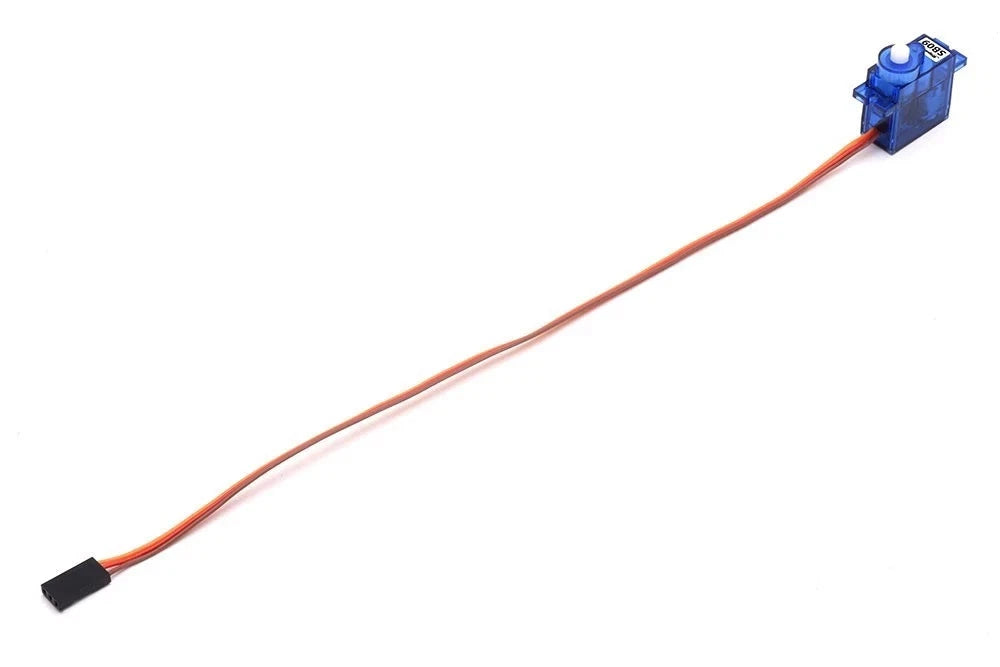

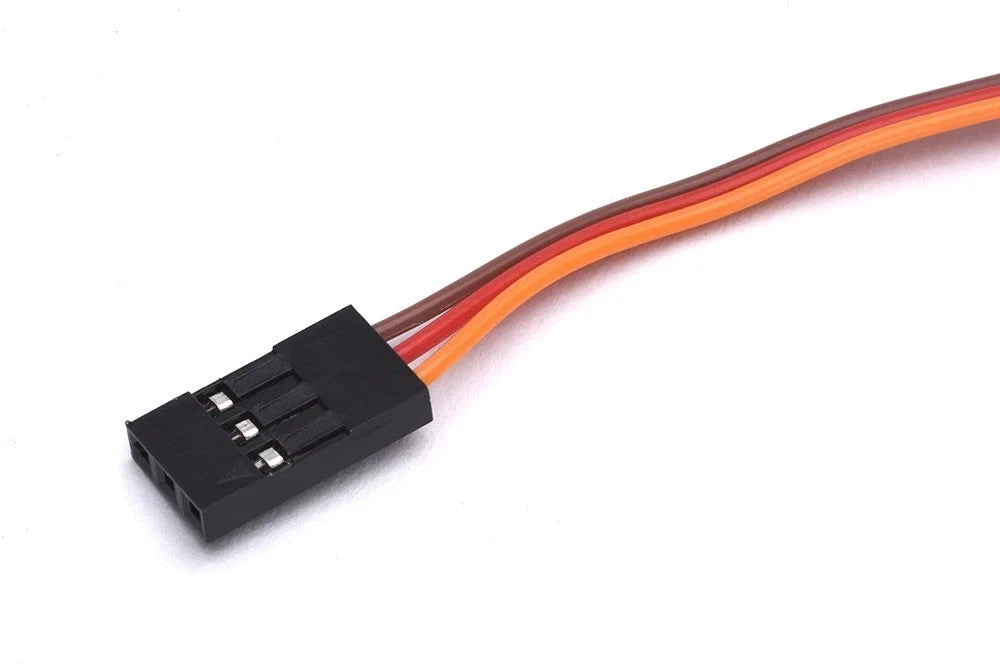

25cm Lead with Z connector
